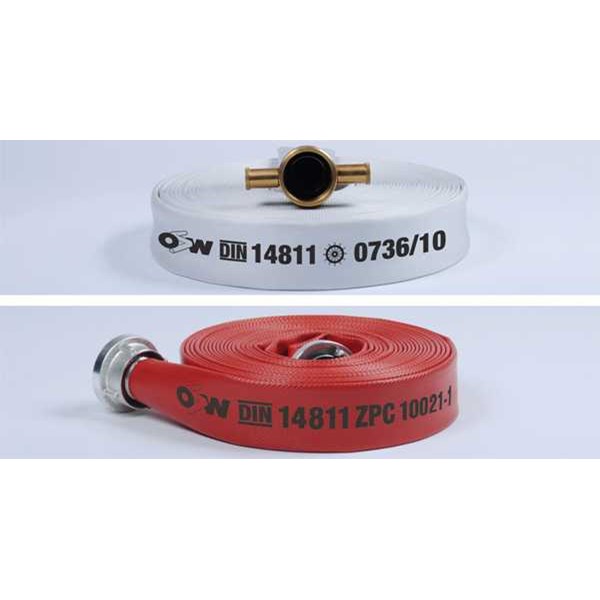

Syntex 500 applications * municipal fire brigades * shipboard * industrial fire brigades * refineries * irrigation construction * 100 % high tenacity polyester yarn * circular-woven twill weave, warp threads multiple twisted * high-quality, very light synthetic rubber on the basis of EPDM features * seawater-resistant, weather-resistant * ageing and ozone resistant * temperature range from – 40 ° C up to + 100 ° C * minimum friction loss because of very smooth inner lining * light and flexible * minimum maintenance * PU-coating on request special options * other diameters * maximum lengths up to 500 m * individual stencilling ( e. g. ­ Company-logo or -name) * all international couplings standards approvals * DIN 14811 : 2008 class 1/ class 2 * Germanischer Lloyd * M.E.D. 96/ 98/ EC * BS 6391 Type 1 ( white) * BS 6391 Type 2 ( red coated) Technical data diameter bursting pressure working pressure weight in g in mm in inch in bar in psi in bar in psi white PU-coated 25 ( D) 1 60 870 16 235 130 140 38 1 1/ 2 60 870 16 235 200 210 45 1 3/ 4 60 870 16 235 240 255 52 ( C) 2 60 870 16 235 275 290 65 2 1/ 2 60 870 16 235 360 375 70 2 3/ 4 60 870 16 235 430 455 75 ( B) 3 60 870 16 235 480 500 102 ( A) 4 35 510 12 175 600 640 110 ( A) 4 1/ 3 35 510 12 175 775 825
